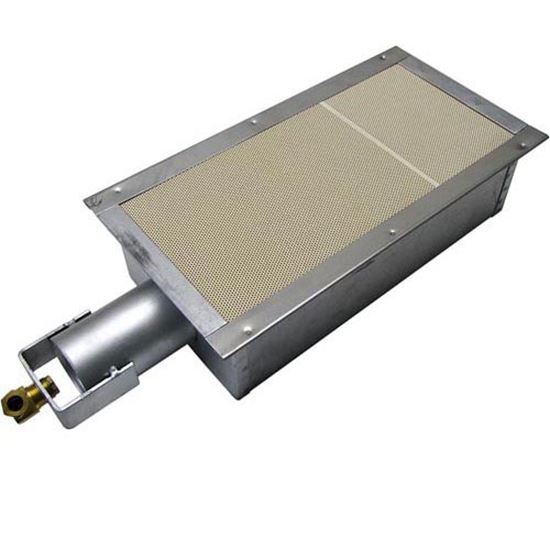

Picture of Burner, I/r - Broiler for American Range Part# 10620

Burner, I/r - Broiler for American Range Part# 10620

Burner, I/r - Broiler for American Range Part# 10620
View Similar Parts (Powered by PartLens) View Similar Parts (Powered by PartLens)
Manufacturer: American Range
Parts FPS - Available
$320.03
Be the first to review this product

Secure Payments:

Parts FPS - Secure Payments:Image
INFRA-RED BROILER BURNER
TOP OF BOX, 12-3/4" X 6-3/4" OD, WEIGHT 5.6 LBS.
CERAMIC AREA 11-1/4" X 5-1/8"
BOTTOM OF BOX 11-11/16" X 5-3/4" X 3-3/8"H
VENTURI 2.122" DIA OD X 2-5/16"L, W/ BRACKET 4-3/16"L
ORIFICE #48 X 3/8" CCT
TOTAL LENGTH W/O ORIFICE 16-1/2"
AMERICAN RANGE
BROILER
ARCM CHEESEMELTER, AVB VERTICAL BROILER.
***VERIFY THE SIZE OF THE BURNER THE CUSTOMER IS ORDERING -
AMERICAN RANGE HAS CONFLICTING INFORMATION ON THEIR IR
BURNERS.
Ship Weight 7.09 lbs
  • Description
    INFRA-RED BROILER BURNER
    TOP OF BOX, 12-3/4" X 6-3/4" OD, WEIGHT 5.6 LBS.
    CERAMIC AREA 11-1/4" X 5-1/8"
    BOTTOM OF BOX 11-11/16" X 5-3/4" X 3-3/8"H
    VENTURI 2.122" DIA OD X 2-5/16"L, W/ BRACKET 4-3/16"L
    ORIFICE #48 X 3/8" CCT
    TOTAL LENGTH W/O ORIFICE 16-1/2"
    AMERICAN RANGE
    BROILER
    ARCM CHEESEMELTER, AVB VERTICAL BROILER.
    ***VERIFY THE SIZE OF THE BURNER THE CUSTOMER IS ORDERING -
    AMERICAN RANGE HAS CONFLICTING INFORMATION ON THEIR IR
    BURNERS.
    Ship Weight 7.09 lbs
