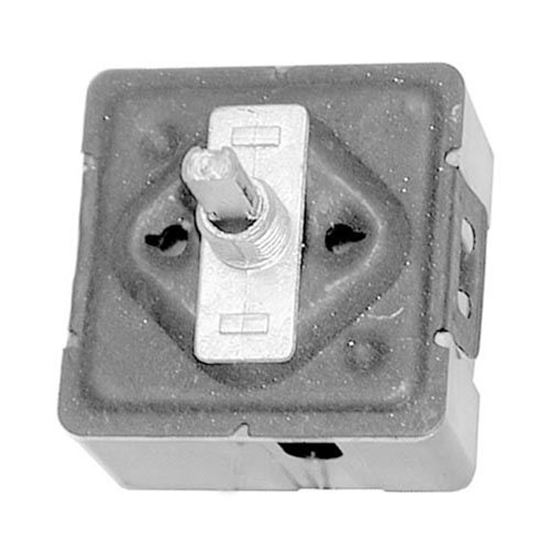

VERTICLE PALNUT MOUNT, 22-1/2 % AT LOW SETTING
120V/15A )( INFINITE ), TERMINAL( 5; 1/4" TAB;
L1,L2(LINE),P(PILOT),H1,H2(LOAD) ); CONTACTS( N.O. )' (
ROTARY )( 1-10 ); SHAFT( 1/4" OD; 3/4" LG;.187" FLAT DOWN )
VULCAN DIAL, OFF, VERY LOW, MEDIUM LOW, LOW, MEDIUM,
HIGH, A2719, # 22-1268
GEN USE BLACK KNOB # 22-1349
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
VULCAN HART
OVEN
SERIES: ET & SG WHERE APPLICABLE.
VULCAN DIAL, OFF, VERY LOW, MEDIUM LOW, LOW, MEDIUM,
HIGH, # 22-1268
GEN USE BLACK KNOB # 22-1349
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
UNIVERSAL ELECTRIC KNOB KIT, # 22-1576
INCLUDES: 5 KNOBS, 10 INLAYS, AND 25 STEM INSERTS;
(5 EA. BLUE, GREEN, GRAY, RED, YELLOW).
USED WITH INFINTE SWITCHES AND ELECTRIC THERMOSTATS
WHITE INFINITE SWITCH KNOB K-141, # 221527
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
PALNUT FOR THREAD STEM SWITCHES, 3/8-24, # 26-3886
HEX NUT FOR THREAD STEM SWITCHES, 3/8-24, # 26-1355
Ship Weight | 0.25 lbs |
Stem Length | 0.812 |
Volts | 120 |
Off/Flat Position | Down |
Mounting Type | 2 |
