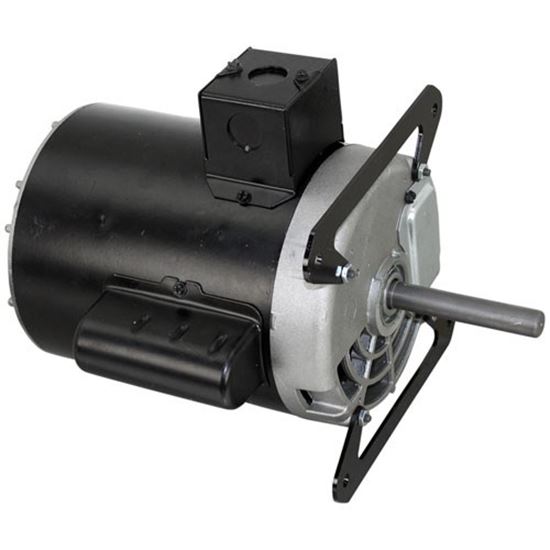

Motor for Garland Part# 1686701

Motor for Garland Part# 1686701 Shaft Length: 3 3/4, Rpm: 1725, Rpm: 1140, Volts: 120

Manufacturer: Garland

$195.36

Be the first to review this product

Qty:

Secure Payments:

Description
Shipping & Returns

BLOWER MOTOR, 2 SPEED.
[ 115V, ] [ .75/.21 HP, ] [1PH ] [1725/1140 RPM ]
[9.8/4.2 AMP ] [CW ROTATION ] [ 3-3/4" X 5/8" SHAFT ]
[ Y56Y FRAME ] [ 6-3/16" X 6-3/16" MTG. BRKT. ]
Qty 4 outside 5/16" holes, on each bracket 2 holes are
6-3/16" on centers and from bracket to bracket also 6-3/16"
centers. Inside bracket mount studs are 3/16" studs and are
spaced on 4" centers bracket to bracket and on each bracket
they are spaced 4.097"
GARLAND BLOWER WHEEL # 26-1464
US RANGE BLOWER WHEEL # 26-1464
GARLAND OVEN MCOGS, MCOGD, ICOG, ECOG, ICOG,.
TIM ORTONS SPRITZER,
US RANGE OVEN MODELS SGE100, SGM100, P1-G-10D, CG100, SDG,
SUMG-100

WHEEL PULLER # 72-1104
GARLAND BLOWER WHEEL # 26-1464
US RANGE BLOWER WHEEL # 26-1464

Ship Weight	35.70 lbs
Shaft Length	3 3/4
RPM	1725
RPM	1140
Volts	120

Description

BLOWER MOTOR, 2 SPEED.
[ 115V, ] [ .75/.21 HP, ] [1PH ] [1725/1140 RPM ]
[9.8/4.2 AMP ] [CW ROTATION ] [ 3-3/4" X 5/8" SHAFT ]
[ Y56Y FRAME ] [ 6-3/16" X 6-3/16" MTG. BRKT. ]
Qty 4 outside 5/16" holes, on each bracket 2 holes are
6-3/16" on centers and from bracket to bracket also 6-3/16"
centers. Inside bracket mount studs are 3/16" studs and are
spaced on 4" centers bracket to bracket and on each bracket
they are spaced 4.097"
GARLAND BLOWER WHEEL # 26-1464
US RANGE BLOWER WHEEL # 26-1464
GARLAND OVEN MCOGS, MCOGD, ICOG, ECOG, ICOG,.
TIM ORTONS SPRITZER,
US RANGE OVEN MODELS SGE100, SGM100, P1-G-10D, CG100, SDG,
SUMG-100
WHEEL PULLER # 72-1104
GARLAND BLOWER WHEEL # 26-1464
US RANGE BLOWER WHEEL # 26-1464
Ship Weight 35.70 lbs
Shaft Length 3 3/4
RPM 1725
RPM 1140
Volts 120
Shipping & Returns
- 2-Day Ground Shipping
- 30-Day Returns
- Low Price Guarantee

Specification

WHEEL PULLER # 72-1104
GARLAND BLOWER WHEEL # 26-1464
US RANGE BLOWER WHEEL # 26-1464

Ship Weight	35.70 lbs
Shaft Length	3 3/4
RPM	1725
RPM	1140
Volts	120
