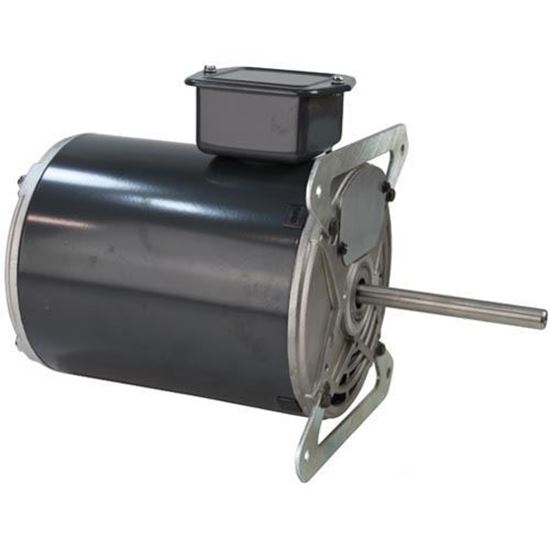

Motor for Southbend Part# 1177452

Motor for Southbend Part# 1177452
Manufacturer: Southbend
Available

Secure Payments:

[ 115V, 50/60HZ ] [ .5/.25 HP, ] [1P ] [1725/1140 RPM ]
[7.2/4.5AMP ] [CW ROTATION FROM THE REAR OF THE MOTOR ]
FRAME 56Z, 2 SPEED.
[ 1/2" X 4-1/2" SHAFT W/ 2 FLATS]
WHITE COMMON
BLACK POWER TO FAN SWITCH - HI
RED POWER TO FAN SWITCH - LO
BLUE/PURPLE OR BROWN/BROWN TO CENTRIFUGAL SWITCH.
IF OVEN DOES NOT HAVE CENTRIFUGAL SWITCH THEN
WIRE TOGETHER W/ WIRE NUT.
IF ONLY USING FOR ONE SPEED, THEN WIRE NUT RED WIRE.
SOUTHBEND
OVEN SERIES:300,400,B,BBB,GB, GS, EH,P, SLGS
WHEEL PULLER # 72-1104
SOUTHBEND BLOWER WHEEL #26-2479
FOR OVEN SERIES: EB, ES; GB & GS AFTER S/N 93K.
COT-1361C, SLGS
SOUTHBEND BLOWER WHEEL # 26-2669
FOR OVEN SERIES:300,400,B,BBB,EH,P, SLGS
Ship Weight 40.25 lbs
  • Description
    [ 115V, 50/60HZ ] [ .5/.25 HP, ] [1P ] [1725/1140 RPM ]
    [7.2/4.5AMP ] [CW ROTATION FROM THE REAR OF THE MOTOR ]
    FRAME 56Z, 2 SPEED.
    [ 1/2" X 4-1/2" SHAFT W/ 2 FLATS]
    WHITE COMMON
    BLACK POWER TO FAN SWITCH - HI
    RED POWER TO FAN SWITCH - LO
    BLUE/PURPLE OR BROWN/BROWN TO CENTRIFUGAL SWITCH.
    IF OVEN DOES NOT HAVE CENTRIFUGAL SWITCH THEN
    WIRE TOGETHER W/ WIRE NUT.
    IF ONLY USING FOR ONE SPEED, THEN WIRE NUT RED WIRE.
    SOUTHBEND
    OVEN SERIES:300,400,B,BBB,GB, GS, EH,P, SLGS
    WHEEL PULLER # 72-1104
    SOUTHBEND BLOWER WHEEL #26-2479
    FOR OVEN SERIES: EB, ES; GB & GS AFTER S/N 93K.
    COT-1361C, SLGS
    SOUTHBEND BLOWER WHEEL # 26-2669
    FOR OVEN SERIES:300,400,B,BBB,EH,P, SLGS
    Ship Weight 40.25 lbs
