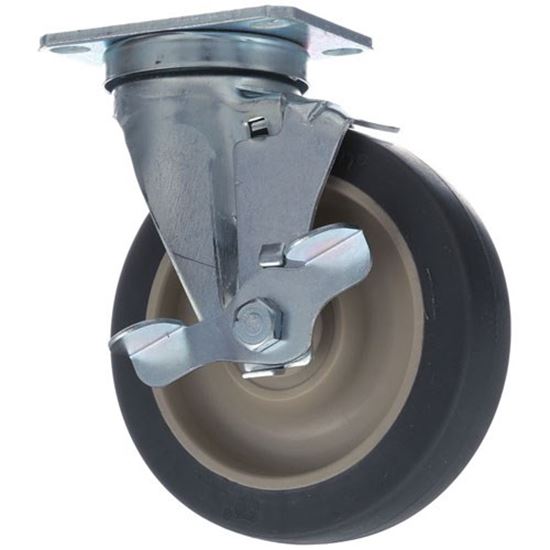

Plate Mount Caster W/brk for Frymaster Part# 8100357

Plate Mount Caster W/brk for Frymaster Part# 8100357 Accepts Axle Bolt: 3/8, Tread Width: 1 1/4, E: 1 3/4, D: 2 3/8

Manufacturer: Frymaster

$86.02

Be the first to review this product

Qty:

Secure Payments:

Description
Shipping & Returns

[5"DIA] X [1-1/4" WIDE], PLATE MOUNT CASTER, W/BRAKE
(3/8" AXLE), (1/2" BORE), (1-1/2" HUB WIDTH)
TREAD TYPE-FLAT, DELRIN BEARING, 300 LBS
(PLATE SIZE 2-3/8" X 3-5/8") AND (1-3/4" X 3" HOLE CENTERS)
(LOAD HEIGHT-6")(WHEEL ONLY # 28-1311
CRES-COR 137, 151, 339
FRYMASTER FRYER 1824/2424G, 1824E, 1824G, 2424E,2424G, 2836
with Float Switch, 8BC, 8C, 8SMS, BID80, D20, D50, D50G,
D50GDD, D60, D80, FBCR18, FBKR18, FBR18, FBRA18, FE155,
FM35, FM45, FM47, FMCFE, FMCFEC, FP128, FP136, FP236, FP28,
FP36, FPD565, FPD65, FPD665, GF14, GF40, H14, H17, H22,
HD60, J3F, J65X, JCFX, KJ3FC, MJ35, MJ45, MJ47, MJCF,MJCFE,
MJCFEC, PMJ35, SM20, SM220, SM35, SM40, SM50, SM60, SM80,
SR114E, SR38, SR42, SR52, SR62, SinBaD, SinBaD II, Super
Runner 52, WFP347ECSE

Ship Weight	3.50 lbs
Accepts Axle Bolt	3/8
Tread Width	1 1/4
E	1 3/4
D	2 3/8

Description

[5"DIA] X [1-1/4" WIDE], PLATE MOUNT CASTER, W/BRAKE
(3/8" AXLE), (1/2" BORE), (1-1/2" HUB WIDTH)
TREAD TYPE-FLAT, DELRIN BEARING, 300 LBS
(PLATE SIZE 2-3/8" X 3-5/8") AND (1-3/4" X 3" HOLE CENTERS)
(LOAD HEIGHT-6")(WHEEL ONLY # 28-1311
CRES-COR 137, 151, 339
FRYMASTER FRYER 1824/2424G, 1824E, 1824G, 2424E,2424G, 2836
with Float Switch, 8BC, 8C, 8SMS, BID80, D20, D50, D50G,
D50GDD, D60, D80, FBCR18, FBKR18, FBR18, FBRA18, FE155,
FM35, FM45, FM47, FMCFE, FMCFEC, FP128, FP136, FP236, FP28,
FP36, FPD565, FPD65, FPD665, GF14, GF40, H14, H17, H22,
HD60, J3F, J65X, JCFX, KJ3FC, MJ35, MJ45, MJ47, MJCF,MJCFE,
MJCFEC, PMJ35, SM20, SM220, SM35, SM40, SM50, SM60, SM80,
SR114E, SR38, SR42, SR52, SR62, SinBaD, SinBaD II, Super
Runner 52, WFP347ECSE
Ship Weight 3.50 lbs
Accepts Axle Bolt 3/8
Tread Width 1 1/4
E 1 3/4
D 2 3/8
Shipping & Returns
- 2-Day Ground Shipping
- 30-Day Returns
- Low Price Guarantee

Specification

Ship Weight	3.50 lbs
Accepts Axle Bolt	3/8
Tread Width	1 1/4
E	1 3/4
D	2 3/8

Fits Frymaster Model Numbers

1824E, 1824E, 2424E, 2424E, 2836 WITH FLOAT SWITCH, 2836 WITH FLOAT SWITCH, 35 SERIES, 35 SERIES, 8BC, 8BC, 8BCSD, 8BCSD, 8C, 8C, 8SMS, 8SMS, BID80, BID80, ESG35T, ESG35T, FBCR18, FBCR18, FBKR18, FBKR18, FBR18, FBR18, FBRA18, FBRA18, FE155, FE155, FM35, FM35, FM47, FM47, FMCF, FMCF, FMCFE, FMCFE, FMCFEC, FMCFEC, FMP45, FMP45, FP128, FP128, FP136, FP136, FP236, FP236, FP247, FP247, FP247-2L, FP247-2L, FP247-2R, FP247-2R, FP247-4, FP247-4, FP28, FP28, FP347, FP347, FP347-2L, FP347-2L, FP347-2R, FP347-2R, FP347-4L, FP347-4L, FP347-4R, FP347-4R, FP347-6, FP347-6, FP36, FP36, FP447, FP447, FPD565, FPD565, FPD65, FPD65, FPD665, FPD665, FPH-14/7, FPH-14/7, FPH155, FPH155, FPHD665, FPHD665, FPP245, FPP245, FPP35, FPP35, FPP45, FPP45, GF14, GF14, GF14-SD, GF14-SD, GF40, GF40, H14, H14, H17, H17, H20.5, H20.5, H22, H22, H55, H55, HD150, HD150, HD150G, HD150G, HD260, HD260, HD50GC, HD50GC, HD60, HD60, J3F, J3F, J65X, J65X, JCFX, JCFX, KFPH-50, KFPH-50, KFPMH-50, KFPMH-50, KJ3FC, KJ3FC, KJH-50, KJH-50, KSCF18G, KSCF18G, MF90-BI, MF90-BI, MJ147-2, MJ147-2, MJ15, MJ15, MJ247, MJ247, MJ347, MJ347, MJ35, MJ35, MJ40, MJ40, MJ447, MJ447, MJ45, MJ45, MJ45E, MJ45E, MJ47, MJ47, MJ50, MJ50, MJCF, MJCF, MJCFE, MJCFE, MJCFEC, MJCFEC, MJH150, MJH150, PMJ35, PMJ35, PMJ45, PMJ45, SBD, SBD, SCFHD160, SCFHD160, SCFHD260, SCFHD260, SCFHD360, SCFHD360, SCFHD360GN, SCFHD360GN, SCFHD456, SCFHD456, SCFHD460, SCFHD460, SCFHD460GN, SCFHD460GN, SCFHD50, SCFHD50, SCFHD60, SCFHD60, SCFHD63, SCFHD63, SDU 50, SDU 50, SINBAD, SINBAD, SINBAD II, SINBAD II, SM20, SM20, SM20G, SM20G, SM220, SM220, SM22G, SM22G, SM35, SM35, SM35G, SM35G, SM40, SM40, SM40G, SM40G, SM50, SM50, SM50G, SM50G, SM50GDD, SM50GDD, SM60, SM60, SM60G, SM60G, SM80, SM80, SM80G, SM80G, SR162GN, SR162GN, SR38, SR38, SR38G, SR38G, SR42, SR42, SR42G, SR42G, SR52, SR52, SR52G, SR52G, SR62, SR62, SR62G, SR62G, SUPER RUNNER 52, SUPER RUNNER 52, VALUE 14-17, VALUE 14-17, WFP347ECSE, WFP347ECSE, YCFH118GNCSE, YCFH118GNCSE, YSCFC1824G, YSCFC1824G, YSCFC24/24/15, YSCFC24/24/15, YSCFC2424G, YSCFC2424G, YSCFC24G, YSCFC24G, YSCFC24G SERIES, YSCFC24G SERIES, YSCFH214GCNS, YSCFH214GCNS, YSCFH314GNC, YSCFH314GNC,
