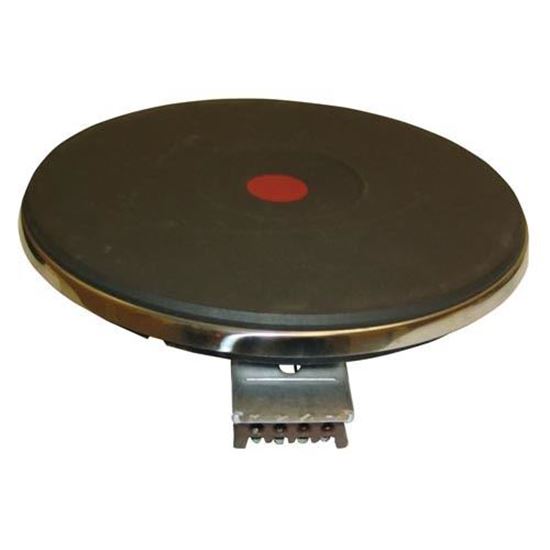

Surface Heater for Toastmaster Part# 1132B8703

Surface Heater for Toastmaster Part# 1132B8703
Manufacturer: Toastmaster
Available

Secure Payments:

SOLID TOP SURFACE HEATER, "FRENCH PLATE"[ 240V 2600W ]
[ 9.25" DIA.] [ FITS 8-3/4" HOLE ][TERMINALS 4EA PIN
W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4-20 THREADS
AND OFFSET PIN.
FOR MOUTING BRACKET USE # 26-2514
TO USE ON A TWO WIRE CONNECTION COMBINE WIRES 1&2 AND 3&4.
HOBART SOLID RANGE TOP UNITS
TOASTMASTER SOLID RANGE TOP
VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C
WELLS HOT PLATE 501FD, 501FF, 502FA, 502FD, 502FF, 502FZ
Ship Weight11.34 lbs
  • Description
    SOLID TOP SURFACE HEATER, "FRENCH PLATE"[ 240V 2600W ]
    [ 9.25" DIA.] [ FITS 8-3/4" HOLE ][TERMINALS 4EA PIN
    W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4-20 THREADS
    AND OFFSET PIN.
    FOR MOUTING BRACKET USE # 26-2514
    TO USE ON A TWO WIRE CONNECTION COMBINE WIRES 1&2 AND 3&4.
    HOBART SOLID RANGE TOP UNITS
    TOASTMASTER SOLID RANGE TOP
    VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C
    WELLS HOT PLATE 501FD, 501FF, 502FA, 502FD, 502FF, 502FZ
    Ship Weight11.34 lbs
  • Shipping & Returns
    • 2-Day Ground Shipping
    • 30-Day Returns
    • Low Price Guarantee

Specification

SOLID TOP SURFACE HEATER, "FRENCH PLATE"[ 240V 2600W ]
[ 9.25" DIA.] [ FITS 8-3/4" HOLE ][TERMINALS 4EA PIN
W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4-20 THREADS
AND OFFSET PIN.
FOR MOUTING BRACKET USE # 26-2514
TO USE ON A TWO WIRE CONNECTION COMBINE WIRES 1&2 AND 3&4.
HOBART SOLID RANGE TOP UNITS
TOASTMASTER SOLID RANGE TOP
VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C
WELLS HOT PLATE 501FD, 501FF, 502FA, 502FD, 502FF, 502FZ
Ship Weight11.34 lbs
Customers who bought this item also bought

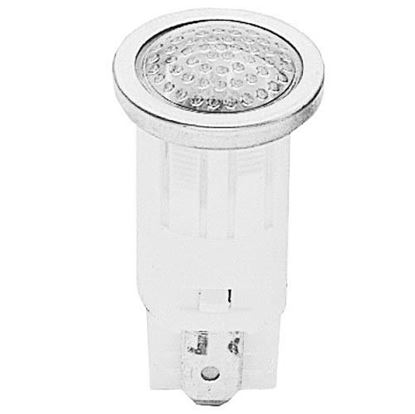

Signal Light for Toastmaster Part# 33414

Signal Light for Toastmaster Part# 33414 Volts: 250, Mount Size: 1/2, Wattage: 1/3, Terminal Size: 3/16
$3.81

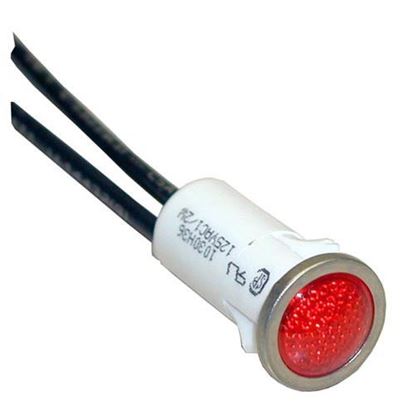

Signal Light for Toastmaster Part# 2J-8006

Signal Light for Toastmaster Part# 2J-8006 Mount Size: 1/2, Wattage: 1/3, Volts: 125, Color: Red Flush Lens
$3.49

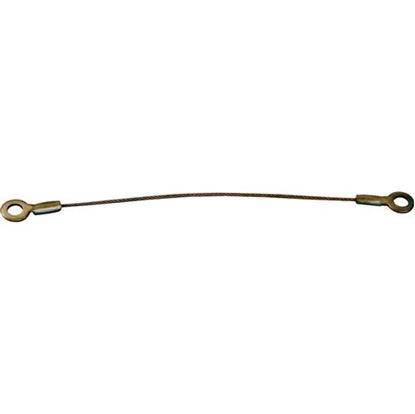

Tm Rh36 Door Cable for Toastmaster Part# 30369
