To get the job done many commercial kitchens turn to Delfield Refrigerators when it comes to cooling ingredients and beverages. Delfield has become a worldwide standard in the foodservice industry, from blast chillers to specification units. Keeping this fact in mind, our today’s pick is the DIY steps for troubleshooting Delfield refrigerator.
PartsFPS is your one-stop online store for all the major Delfield Parts of Restaurant and Kitchen Equipments. We are bringing the Restaurant Equipment Parts to improve restaurant operations by allowing the safe and quick service of food in thousands of restaurants all over the world. We are the Master Distributor for Delfield Restaurant Equipment Parts.
From ever-shifting customer demands to the inherent pressures of operation, food service industries always face some natural frenzy and chaos. So let’s handle it together. Get your work done with us. Buy the range of Delfield Parts at a discounted price from the trusted distributor of Delfield replacement parts – PartsFPS.
Let’s start to dig more to troubleshoot the Delfield refrigeration parts.
There are bound to be a few slip-ups along the way since these units run nonstop every day. It’s hard to find the root cause immediately when your model isn’t running properly. Fortunately, to help you identify the problem and get your kitchen back in working order quickly we have some Delfield refrigerator troubleshooting tips.
Not Cooling Properly :
The Delfield unit may be not cooling properly and there may be a couple of factors behind that. First, for a high build-up of dust or grease check the condenser coil. This will cause the interior to be warmer than usual by blocking out the cold air. The way to solve this issue is by doing dusting and cleaning. However, make sure to have replaced the coil, if thick grease has damaged the coil.
A faulty coil can cramming the interior with warm or stem from blocking the air vents, or leaving the door open. When fruits, veggies, and other acidic items are left uncovered in the unit, if the coil’s copper has excessive rust, this typically occurs. Too much rust will cause evaporator coil to fail quicker than usual.
Leaking Water :
Not only can cause the unit to feel warm, but a frozen evaporator coil can also leak water inside the cabinet or under the fridge. While clearing space or cleaning the coil might help, you may need to have the part replaced. A blocked drain tube is another major reason for leaking, which is usually located in the back of the unit. Clear clogged coil with an air compressor or a shop vacuum.
Door Not Closing :
The most common reasons why a commercial refrigerator door won’t close is a split or cracked gasket. To find the appropriate type for your model, make sure to consult your owner’s manual. Your unit could have damaged hinges, aside from the gasket, that need to be replaced. Check to see if your fridge is level if the hinges are in good shape. To keep the unit level and the door sealed shut, you may need to readjust the casters and wheels.
Common Delfield Error Codes :
When something is wrong with your unit, select Delfield Refrigerator models have error codes that display. Below we mentioned the common error codes associated with different Delfield refrigerators. Please note those, and check your unit for the option which is showing by the
Danfoss Display Codes :
E-1 Code – The control might need to be replaced if the sensor isn’t open or shorted.
E-2 Code – The coil temperature sensor circuit needs to be replaced, as it is opened or shorted. The control might need to be replaced if the sensor isn’t open or shorted.
E-6 Code – The control needs to be replaced, as this code indicates that your unit’s control has a defective potentiometer.
E-13 Code – This code indicates a communication error between the display and controller. Your unit’s display or control needs to be replaced if not seeing any loose plug on the cable connecting the two components.
ERC2 Display Codes :
Er 1 & Er 5 Codes –If there your unit’s software or hardware fails, both codes will display. The issue is resolved by setting when the power is off.
Er, 2 Code – This code indicates a faulty display module cable for the refrigerator. To resolve the issue to reset the error, you’ll need to turn off the power.
Er, 3 Code – The sensor might need to be replaced, if the error message still displays after resetting, as the code indicates that the sensor has opened or shorted.
Er, 4 Code – The unit’s evaporator sensor has opened or shorted. If the error message still displays after resetting, like the Er 3 code, the sensor might need to be replaced.
These are the few error codes for the Delfield refrigerators so if required replace those Delfield Refrigeration Parts. Below we have mentioned some of the product details for your convenience to choose the right Delfield part for your Kitchen Equipment.

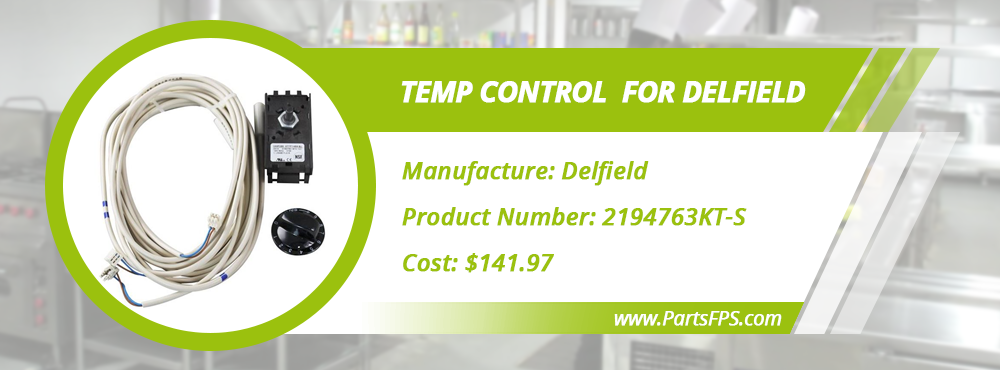

1) Temp Control - Danfoss for Delfield Part# 2194763KT-S
Product Details:
Looking for the Delfield 2194763KT-S? PartsFPS has it! Latest trends and products! Find OEM Delfield 2194763KT-S CONTROL, KIT, DUAL PROBE, DF, 440 replacement part at our online store with fast and safe shipping on all in-stock orders.
Technical Specification:
- Name of the product: Delfield 2194763KT-S Danfoss Control Kit
- Parts Number: 2194763KT-S
- Manufacturer: Delfield
- Item Type: Temp Control
2) Motor for Delfield Part# 2162691-S
Product Details:
Order Delfield 2162691-S Fan Motor at PartsFPS. Delafield has over 50-years of industry experience and provides commercial foodservice equipment. And we are their trusted distributor. Visit us to get the required part.
Technical Specification:
- Name of the product: Delfield 2162691-S Fan Motor
- Parts Number: 2162691-S
- Manufacturer: Delfield
- Item Type: Fan Motor
3) Hinge Kit for Delfield Part# RF000066-S
Product Details:
Delfield Rf000066 replaced with RF000066-S hinge kit assembly complete with brackets, spring cartridge, screws. This hinge kit is used on Models: 402, 403, 406, 407, 6000XL, 724, D4427N, MFR1-S, MS-8-1H, MS-8-EH, and UC4148.
Technical Specification:
- Name of the product: Delfield RF000066-S Hinge Kit
- Parts Number: RF000066-S
- Manufacturer: Delfield
- Item Type: Hinge Kit

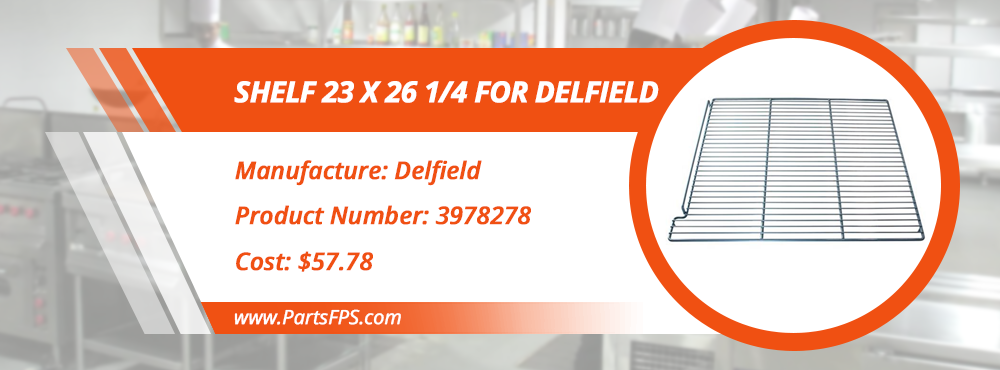

4) Shelf - 23" X 26 1/4" for Delfield Part# 3978278
Product Details:
Use genuine OEM parts for safety reliability and performance, and get the product in our online store in a discounted price. PartsFPS is the genuine distributor of the Delfield parts.
Technical Specification:
- Name of the product: Delfield 3978278 Right Hand Shelf
- Parts Number: 3978278
- Manufacturer: Delfield
- Item Type: Right-Hand Shelf

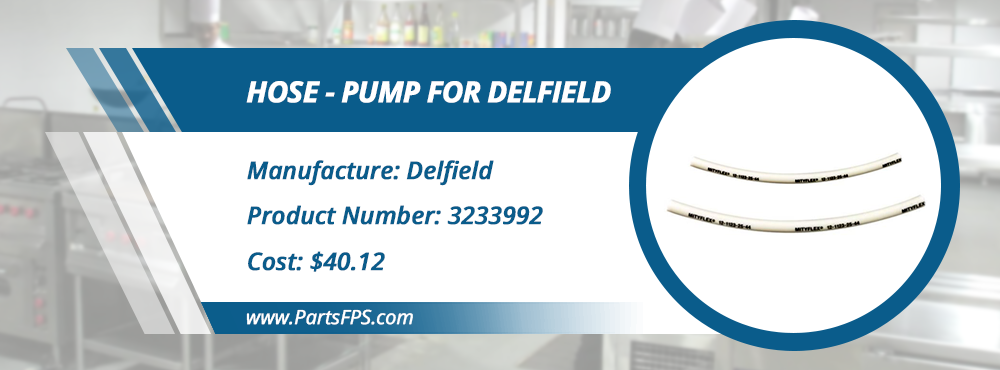

5) Hose - Pump for Delfield Part# 3233992
Product Details:
Delfield 3233992 Peristaltic Pump Hose are designed to fully compress and relax to full volumetric size at a high cycle rate and to last for a long period of time. We are the trusted distributor of the Delfield Restaurant Equipment Parts. So get your required hose here in our store.
Technical Specification:
- Name of the product: Delfield 3233992 Peristaltic Pump Hose
- Parts Number: 3233992
- Manufacturer: Delfield
- Item Type: Peristaltic Pump Hose

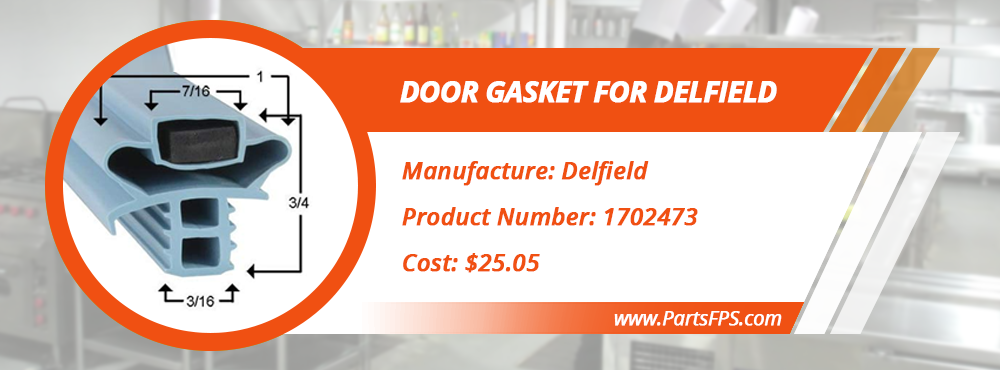

6) Door Gasket for Delfield Part# 1702473
Product Details:
Shop Delfield 1702473 Equivalent Magnetic Door Gasket - 22 1/2 inch x 25 1/2 inch. In stock at a low price and ready to ship same day from PartsFPS! Delfield 1702473 Door Gasket Size 22 1/2 x 25 ½. For Models: 4448N-12, 4472N-12, 4472N24M, ST4472N, 4472N12, 4472N18, UCD4448N, 444812, 44488.
Technical Specification:
- Name of the product: Delfield 1702473 Door Gasket
- Parts Number: 1702473
- Manufacturer: Delfield
- Item Type: Door Gasket
