Lang is one of the most acclaimed, inventive and trusted brands for more than 100 years. It was founded in the year 1904 and the company has its base in St. Louis, Missouri. Since June 2006, Lang acts as a derivative of a Star Manufacturing International Inc. It provides a course of commercial as well as marine products. Lang furnishes equipment like- surface heaters, convection ovens, fryers, griddles, two-sided cooking equipment, char broilers, deck ovens, cheese melters/ salamander, induction ranges and more. Lang parts are one of those manufacturing company that designs induction ranges. Feel safe and reach out to us at our website, where we will satisfy you with your needs. PartsFPS has a high-quality and wide range of in-stock collection of Lang replacement parts .So, we suggest you, put your trust in us and shop from our website your desired Lang Manufacturing Parts.
We are one of the well-grounded and dependable Lang Parts Distributors/Suppliers throughout the world.
Lang Manufacturing Parts:-
Lang is the maker and manufacturer of griddles, ovens, char broilers, induction ranges and much more. Lang’s success is highly attributed to the food service industry. The company is also one of the top manufacturers that supply cooking equipment for the marine customers throughout the world. Hence, their contribution to the marine industry is also greatly noteworthy.
Lang Surface Heater and its uses:-
A solid surface heater is generally a machine or a device that is used to raise the temperature of a surface. These surface heaters are made up of mica and small wire. They are constructed of mica that is gradually cut down by a CNC machine to a specific shape and size and it is tied with a ribbon. The work of that ribbon is to generate or produce voltage. The solid surface heater can form numerous shapes.
In the food service industry, the surface heaters are used to provide heat for warming plates. They perfectly heat the product inside by acting as a heat transfer and this heat is spread through mica.
Lang part is one of the top manufacturers of Solid Surface Heaters.
Surface Heater for Lang Part #11120-01
Specifications-
SURFACE ELEMENT, [240V 2500W 1PH] [10”DIA.]
ELEM DIA, 7-1/2”, OVERALL DIA. 10”
WELLS HOT PLATE H63, H65, H336, H636.
ITEM WEIGHT- 3.36 POUNDS.
Surface Heater for Lang Part #11120-13
Specifications-
SOLID TOP SURFACE HEATER, “FRENCH PLATE” [240V 2600W] [9.25”DIA.] [FITS 8-3/4” HOLE]
[TERMINALS 4EA PIN W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4 -20 THREADS AND OFFSET PIN FOR MOUNTING BRACKET USE #26-2514 TO USE ON A TWO WIRE CONNECTION COMBINE WIRES 1 &2 AND 3&4. HOBART SOLID RANGE TOP UNITS.
TOASTMASTER SOLID RANGE TOP VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C WELLS HOT PLATE 501FD, 502FA, 502FD, 502FF, 502FZ.
Surface Heater for Lang Part #2N-11120-13
Specifications-
SOLID TOP SURFACE HEATER, “FRENCH PLATE” [240V 2600W] [9.25”DIA.] [FITS 8-3/4”HOLE] [TERMINALS 4EA PIN]
W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4 -20 THREADS AND OFFSET PIN.
FOR MOUNTING BRACKET USE #26-2514
TO USE ON A TWO-WIRE CONNECTION COMBINE WIRES 1&2 AND 3&4.
HOBARTS SOLID RANGE TOP UNITS.
TOASTMASTER SOLID RANGE TOP.
VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C.
WELLS HOT PLATE 501FD, 501FF, 502FA, 502FD, 502FF, 502FZ.

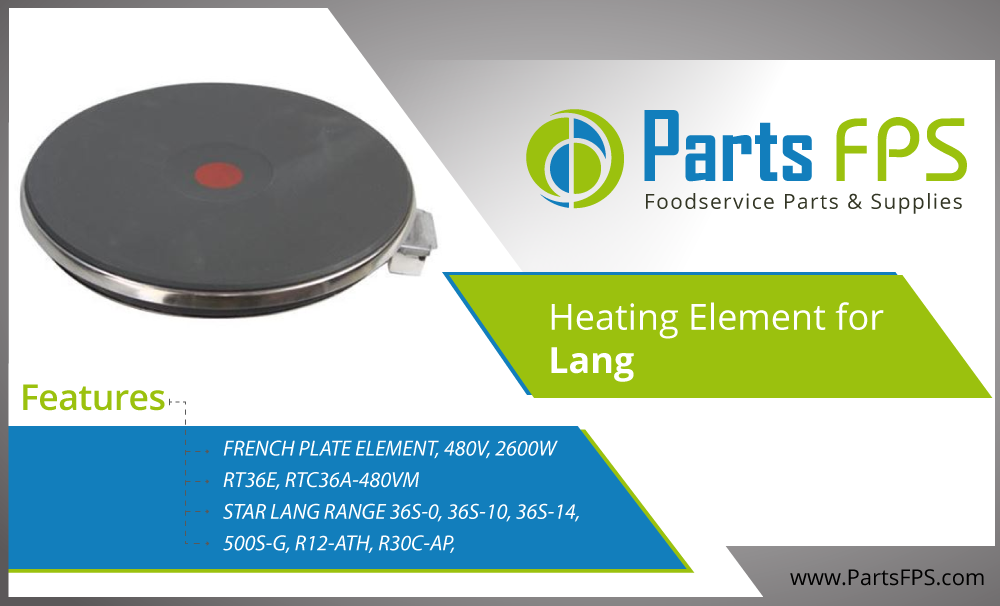

Lang Surface Heater 2N-11120-14
Specification-
FRENCH PLATE ELEMENT, 480V, 2600W
9" DIAMETER
STAR LANG RANGE 36S-0, 36S-10, 36S-14, 36S-2, 36S-20,
36S-3A, 500S-A, 500S-B, 500S-C, 500S-D, 500S-E, 500S-F,
500S-G, R12-ATH, R30C-AP, R30C-PT, R30S, R30S-M, R60S,
RF21S-A, RF21S-C, RF21S-D, RF21S-G, RF21S-H, RT36A, RT36C,
RT36E, RTC36A-480VM
VULCAN LANG SOLID SURFACE HEATER FRENCH PLATE 480 440V 2600W E.g.o. 12.22454.484
12.22454.48 2600W-48 HOT PLATE, ELECTRIC Lang Marine SOLID TOP SURFACE HEATER, "FRENCH PLATE"
[ 480V 2600W ]
[ FITS 8-3/4" HOLE ][TERMINALS 4EA PIN W/SCREW, BOTTOM HAS CENTERED MOUNTING STUD 1/4-20 THREADS AND OFFSET PIN. VULCAN RANGE E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C Toastmaster Hotplate, 2600W/480V Southbend Range Plate, French E.G.O. Lang SOLID SURFACE HEATER FRENCH PLATE 480V 2600W ]
French Plate Element, 480V, 2600W, 9" Diameter,
Star Lang Range 36S-0, 36S-10, 36S-14, 36S-2, 36S-20, 36S-3A, 500S-A, 500S-B, 500S-C, 500S-D, 500S-E, 500S-F, 500S-G, R12-Ath, R30C-Ap, R30C-Pt, R30S, R30S-M, R60S, Rf21S-A, Rf21S-C, Rf21S-D, Rf21S-G, Rf21S-H, Rt36A, Rt36C, Rt36E, Rtc36A-480Vm Toastmaster Hotplate, 2600W/480V
PartsFPS has a wide range of collection of Lang Manufacturing Replacement Parts:
Blower Wheel for Lang Part #2U- 71500-05
Specification-
BLOWER WHEEL,
1-1/2" X 10-3/4" X 1/2" HOLE, FLAT BACK, 2 SETS, CCW,
PULLER HUB.
FOR MOTOR # 68-1262, 115/230V
FOR MOTOR # 68-1426, 460/480V
LANG OVEN ECO, GCO, EHS
Contactor For Lang Part #2E-30700- 03
Specification-
HARTLAND CONTACTOR, 3 POLE, 208/240 VOLT
30 AMP INDUCTIVE, 40 AMP RESISTIVE
BLODGETT
CLEVELAND KETTLE KEP, KEL, KEL-T, SSE-L,
SSE-T ( STANDARD KETTLES ONLY )
SKILLET SEL-40, SEM-40, SET-15.
GROEN STEAMER
HATCO BOOSTERS
HUBBEL BOOSTER
IMPERIAL SERIES: IFSE, ITGE, SERIES: ICV-E
LEGION KETTLE
MARKET FORGE FRYER DFFE, KETTLE
MARKET FORGE ELECTRIC STEAM GENERATORS
STAR FRYER
STEREO DISHWASHER
PartsFPS has a wide range of in-house collection of Lang Manufacturing Replacement Parts:
a) 125 amp Terminal Block.
b) 3-heat Rotary Switch
c) Blower Wheel
d) Board, Control
e) Surface Heater
f) Cable, Ribbon (13”)
g) Ceramic Fuse
h) Circuit Board Switch
i) Connector, wire
